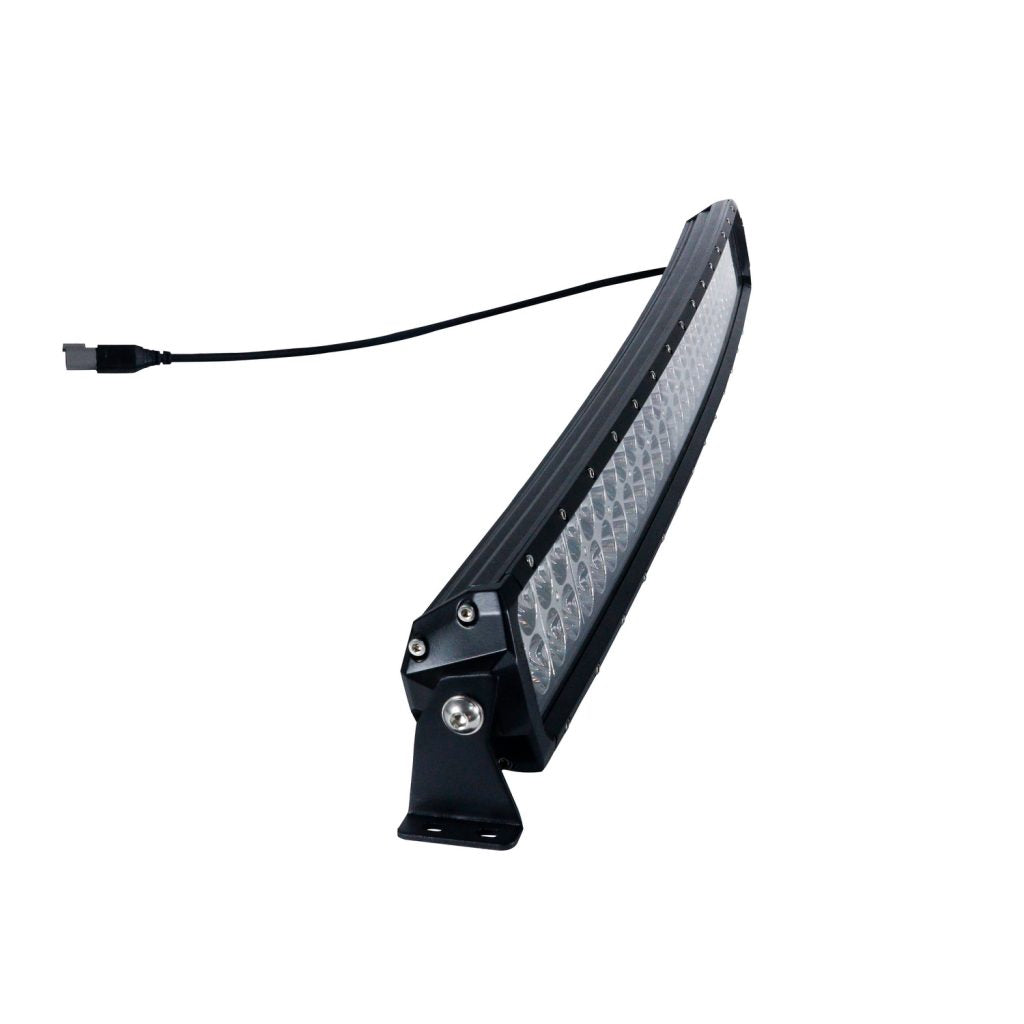

30" ECO2 Curved Double Row

The ECO2 Curved Series was designed to meet the needs of the value oriented off-road produce less heat, allowing us to reduce material and packaging mass, resulting in dramatically lower pricing without sacrificing performance.

The ECO2 Curved Series features the excellent value of our ECO2 Straight Double Row Models – and is designed to conform to the aerodynamic styling of your vehicle. This 30” Curved Double Row Light Bar features the same outstanding Combo Pattern and impressive light output (12,540 lm). The Curved Double Row Flood/Spot Pattern improves range of vision beside the vehicle, while extending long range visibility beyond your high beam headlights. Equipped with Side and Bottom Mount Brackets for ease of installation.

This light is sold individually and does not include a harness

Harness for 1 light - 72999

Specifications

LED:                                         60 x 1.5W Osram

Beam Pattern:                         Combination

Colour Temperature:               6000K

Luminous Flux:                        12,540 lm (Raw) /  5,880 lm (Effective)

Lux:                                         3920 @ 6m

IP Rating:                                 IP68

Voltage:                                   DC9-36V

Wattage:                                 90W

Amperage 12V:                        5.2A

Temperature Range:               -40 - +45°C

Housing Material:                   Aluminum with DuPont Powdercoat

Lens Material:                         Lexan Polycarbonate

Mounting Bracket:                  Stainless Steel Side & Alloy Bottom

Size:                                        818 x 74.9 x 4f9.8mm (22.2 x 2.9 x 2″)

Harness:                                  Sold Separately (PN 72999)

LED Lifespan:                          50,000+ hrs

Warranty:                                3 Year Limited Warranty
