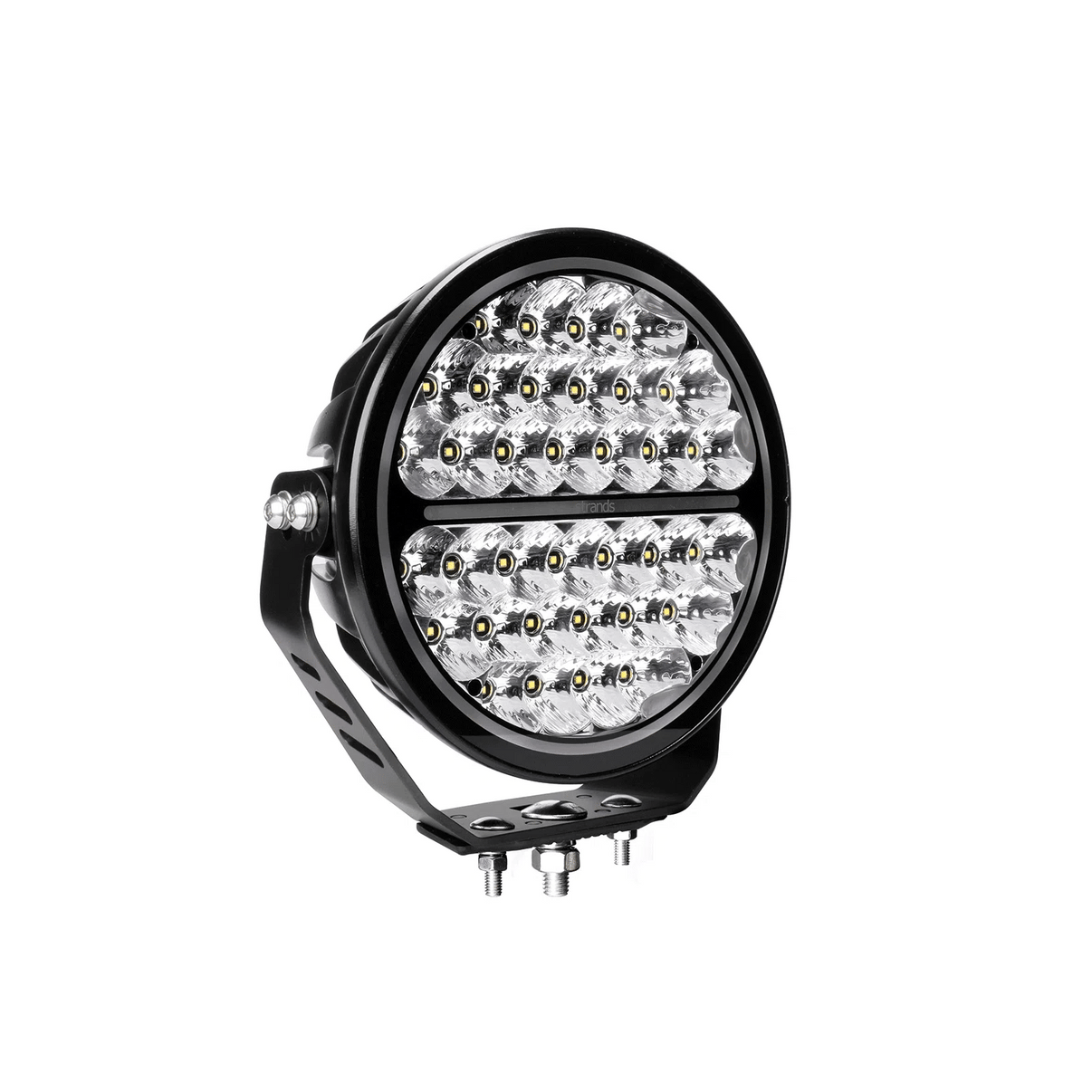

9" Round Siberia Night Ranger Spot

** Discontinued - replaced by - 270992

With Siberia Night Ranger with a spot-beam pattern, you get it all. An impressive light beam. Maximum performance. Legendary light output. Siberia NR gives you efficiency at completely new levels on all roads and in all conditions. The power of the LEDs gives you an extremely long and concentrated light forward where you need it the most.

Amber or white? Siberia NR comes with Siberia’s dual-position lights to give you an outstanding light and design effect, perfectly placed in a circle around the LEDs with a line in the middle. Which color shows your style and personality the most?

Siberia NR is built from durable materials. The lens is made of transparent PC (polycarbonate), which makes it basically unbreakable and protects the diodes from scratches and weather conditions. The durable aluminum housing also withstands salt and other stresses from the harsh climate.

In addition to its durability, the Siberia Night Ranger Spot is easy to install. Mount with the included mounting bracket, screws, and 0.5-meter cable. Connect easily with the DT-4 connector included in the package. Perfect for cars, trucks, and heavier vehicles. With the Siberia Night Ranger Spot mounted, you get innovation, design, and performance like nothing you’ve experienced before.

Available in two models – Night Ranger (clear lens) with flood or spot beam pattern and Bush Ranger (yellow lens). Each model is available in 7″ and 9″.

This light is sold individually and does not include a harness.

Wiring Harness Options:

Harness for one light – 72999-1
Harness for two lights – 73240-2
For three lights – 270479 Siberia Pro High Power Harness Kit

Specifications

• Type of lamp LED
• Type of LED Osram
• PCS LED´s 34
• Voltage (V DC) 9-32V DC
• Theoretical effect (w) 12V 170
• Theoretical effect (w) 24V 170
• Consumption (w) 12V 145.3
• Consumption (w) 24V 144.6
• Theoretical lumen 14280
• Actual lumen 10485
• 1 LUX @ m 900
• Kelvin 6000
• IP-class 67/69K
• Colour housing Black
• Colour lens Clear
• Colour LED´s White and Amber
• Beam pattern Flood
• Position light Yes amber and white
• Connection DT-4
• Cable length (mm) 500
• Material bracket Stainless steel
• Material housing/chassi Aluminium
• Material lens Polycarbonate
• Length (mm) 228.6
• Depth (mm) 86.7
• Height (mm) 228.6
• Height including bracket (mm) 249.3
• Diameter (mm) 228.6
• Operating temperature -20°C – +45°C
• EMC ECE R10
• 3 Year Function Warranty
