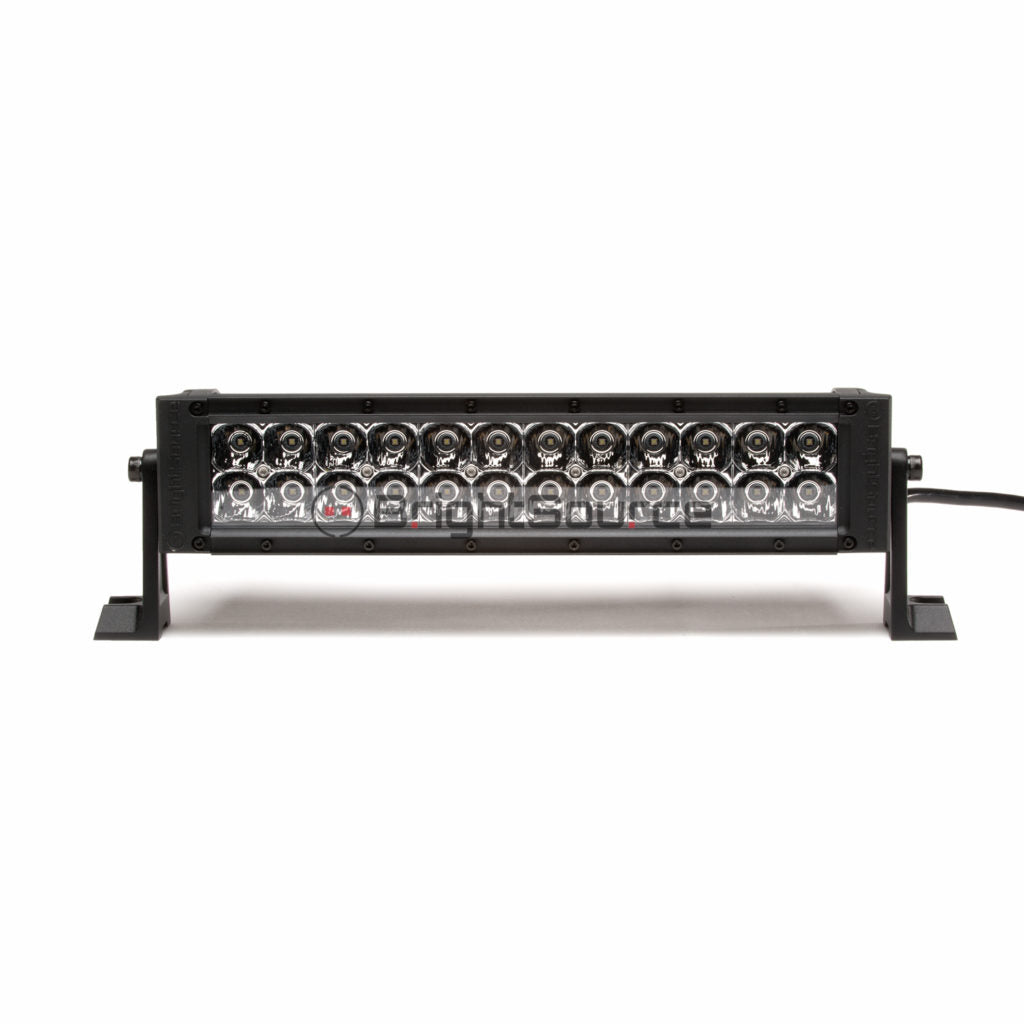

12" E-Marked Double Row

Features

Street Legal* Long Range Driving Light Pattern

Side Mount and Back Mount Bracket Options

Plug and Play Harness Included

5 Year Limited Warranty

Our 12” Double Row Light Bar is used in many applications, particularly when compliancy is required. Whether installed on a bumper for forward facing use or as a work light, positioned on the side of a vehicle or at the rear for amazing light output for trailer haulers. An exceptional lamp for use in all types of work trucks, municipal or commercial fleets, road work/service vehicles, agriculture, forestry, mining, construction…virtually any vehicle application. Super easy, plug and play installation with included harness and switch plus side mount or back mount bracket options.

This light is sold individually, plug and play harness included

Specifications

• LED: 24 x 3W Osram LEDs
• Beam Pattern: E-Mark Street Legal Driving Pattern
• Colour Temperature: 5000K
• Luminous Flux: 6480 lm (Raw) 2635 lm (Effective)
• Lux: 1 Lux @ 431m
• IP Rating: IP 67
• Voltage: DC10-30V
• Wattage: 72W
• Amperage 12V/24V: 3.8A @12V /1.9A @24V
• Reverse Polarity Protection: Yes
• Over/Under Volt. Protection: Yes
• Harness: Plug and Play - Included
• Temperature Range: -40 - +60°C
• Housing Material: Aluminum with Powdercoat
• Lens Material: Epoxy Encapsulated Polycarbonate
• Mounting Bracket: Side and Bottom Mount Options with 304 Stainless Hardware
• Size: 358 x 79 x 87mm (14.1 x 3.1 x 3.4”)
• LED Lifespan: 50,000+ hrs
• Certification: E-Mark/CE ECE R10 RoHS
• Warranty: 5 Year Limited

*Except AB, SK, MB and the U.S.. *Always check local laws for product use and installation requirements
