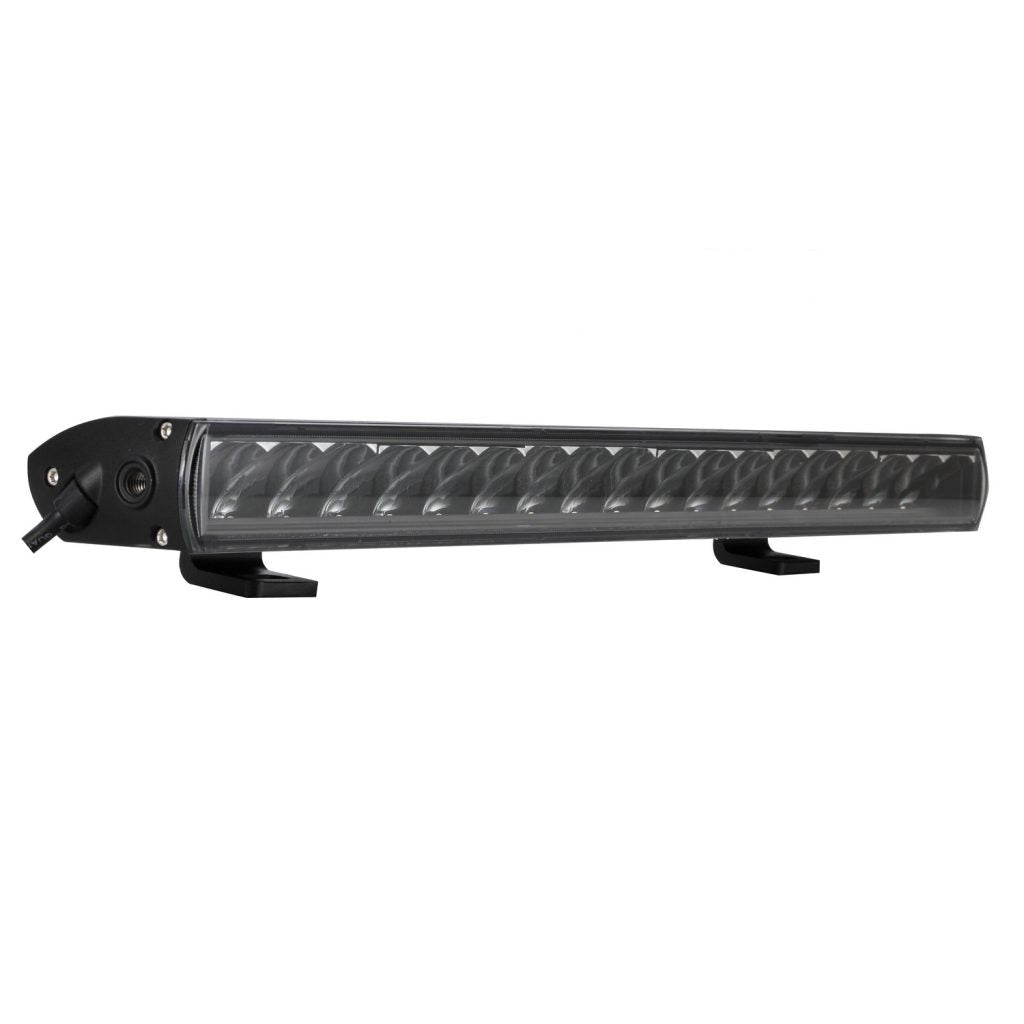

20" Titanium E-Marked Single Row

Features

E-Mark Street Legal*, Long Range Driving Light

Slim profile, smooth, clean look with no bezel housing

Dark lens cosmetic with stunning bright white output

Add a second light with the Centre-Connect kit

5 Year Limited Warranty

Our Titanium Series is our peak performance line. The concept is to combine a distinctive dark cosmetic lens and innovative housings with unmatched beam focus and stunning light output. These innovations are shaking up the traditional double row, forward-facing, LED light bar world.

This light provides excellent focus and long-range visibility (1 lux at 448m), along with a slim profile and smoky lens are the key features in this 20” LED Light Bar. The E-Mark designates this lamp as street legal* for use as a high beam auxiliary driving light. Side and back mount brackets make for easier customized installations. A Centre Connect Kit (P/N 772000) is available to connect two lamps, which allows you to create the bar length you need.

This light is sold individually and does not include a harness

Harness for 1 light - 72999

Harness for 2 lights - 73240

Specifications

• LED: 18 x 5W LG
• Beam Pattern: E-Mark Combo Pattern
• Colour Temperature: 6500K
• Luminous Flux: 8100 lm (Raw) 6950 lm (Effective)
• Lux: 1 Lux @ 448m
• IP Rating: IP68 with Waterproof Breather
• Voltage: DC9-30V
• Wattage: 90W
• Amperage 12V/24V: 6.2A/2.8A
• Reverse Polarity Protection: Yes
• Over-Under Volt. Protection: Yes
• Electro Thermal Management: Yes
• Side Reflecting Optic System: Yes
• Housing Material: Aluminum with Anodized Polyester Powdercoat
• Temperature Range: -40 - +60°C
• Lens Material: Lexan Polycarbonate
• Mounting Bracket: Side and Bottom
• Dimensions: 515 x 38.5 x 68mm (20.3 x 1.5 x 2.7″)
• LED Lifespan: 50,000+ hrs
• Certification: E-Mark ECE R112/R10, CE, RoHS
• Warranty: 5 Year Limited

*Except AB, SK, MB and the U.S. Always check local laws for product installation requirements
