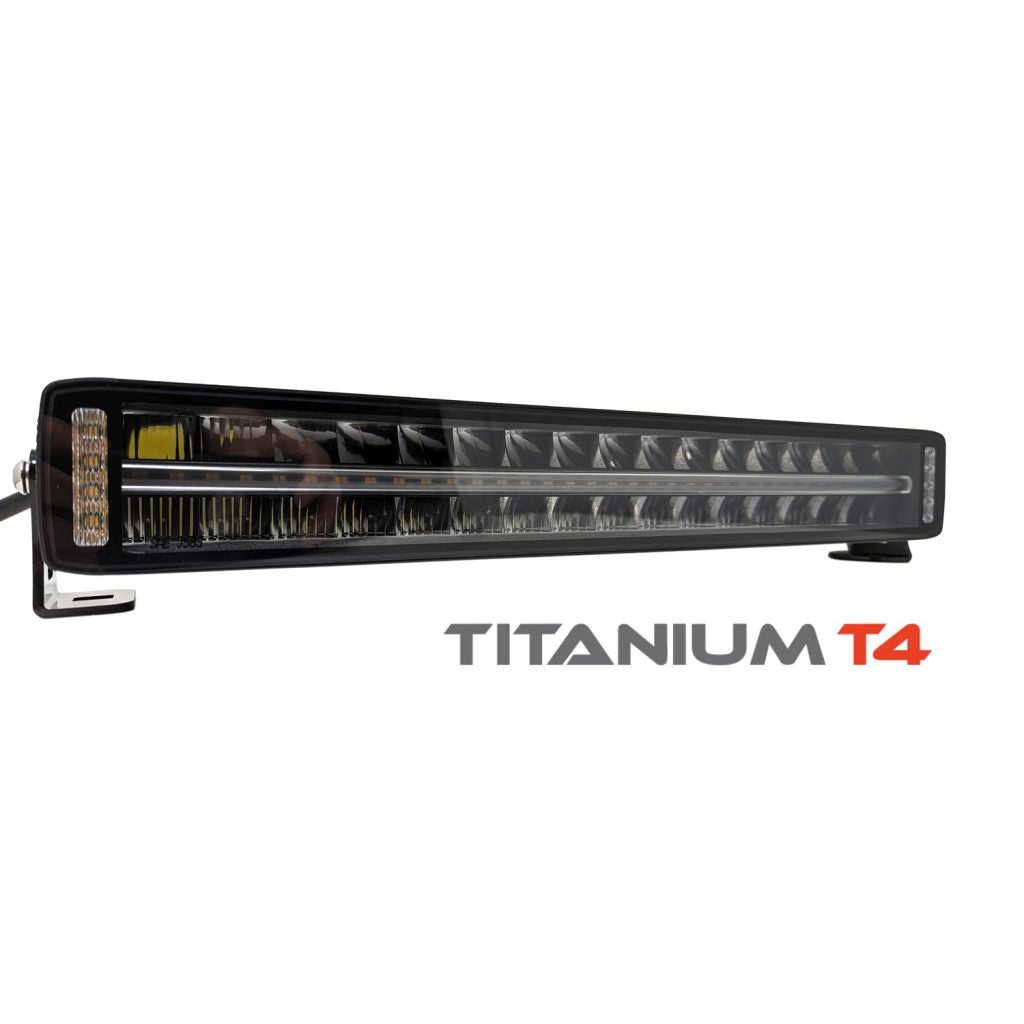

20" Titanium T4 Quad Function - Dual Beam Light Bar

FEATURES:

• SAE/DOT J583 fog light pattern, with a 2nd gear output boost

• SAE/DOT J222 marker light option with amber or white output

• SAE/DOT J595 strobe light with a double flash pattern

• E-Mark R149 certified driving light pattern with a 420 m range

Available plug ‘n play electronic control switch with built in relays – installs in minutes, not hours. See part No. 73601

Specifications

WATTAGE (THEORETICAL/ACTUAL):

Driving 87W/85W; Fog 1 12W/10W, Fog 2 24W/22W; Safety 3W/3W; Position 5W/4W

VOLTAGE:

9V-36V DC

AMPERAGE:

12V/24V Driving 7.08A/3.54A; Fog 1 1A/0.5A; Fog 2 1.83A/.92A

LUMENS:

Driving light – 8700 raw lm; 8500 effective lm

1 LUX @:

420m (Driving Light)

IP RATING:

IP67

BEAM PATTERN:

Top Row SAE Fog Beam/Bottom Row E-Mark Driving Beam

OPERATING TEMPERATURE:

-45°C - +65°C

SAFETY LIGHT:

Amber double flash

COLOUR:

Driving Light 6000K; Fog Light 3000K

HOUSING MATERIAL:

Aluminum with Anodized Polyester Powder Coat

LENS MATERIAL:

Lexan PC

MOUNTING BRACKETS:

Side mounts and back mounts included

DIMENSIONS:

520 x 80 x 7.3 mm / 20.5 x 3.15 x 2.88”

CONNECTION:

6 pin DT with 30 cm Whip

WIRING:

Black: Ground (-)

Red: Driving Light

Yellow: Fog Light

Blue: Position Light

Brown: Safety Strobe

LED LIFESPAN:

30,000+ hrs

CERTIFICATION:

E-Mark R149, SAE J583, SAE J595, SAE J222

WARRANTY:

3 Year Limited
