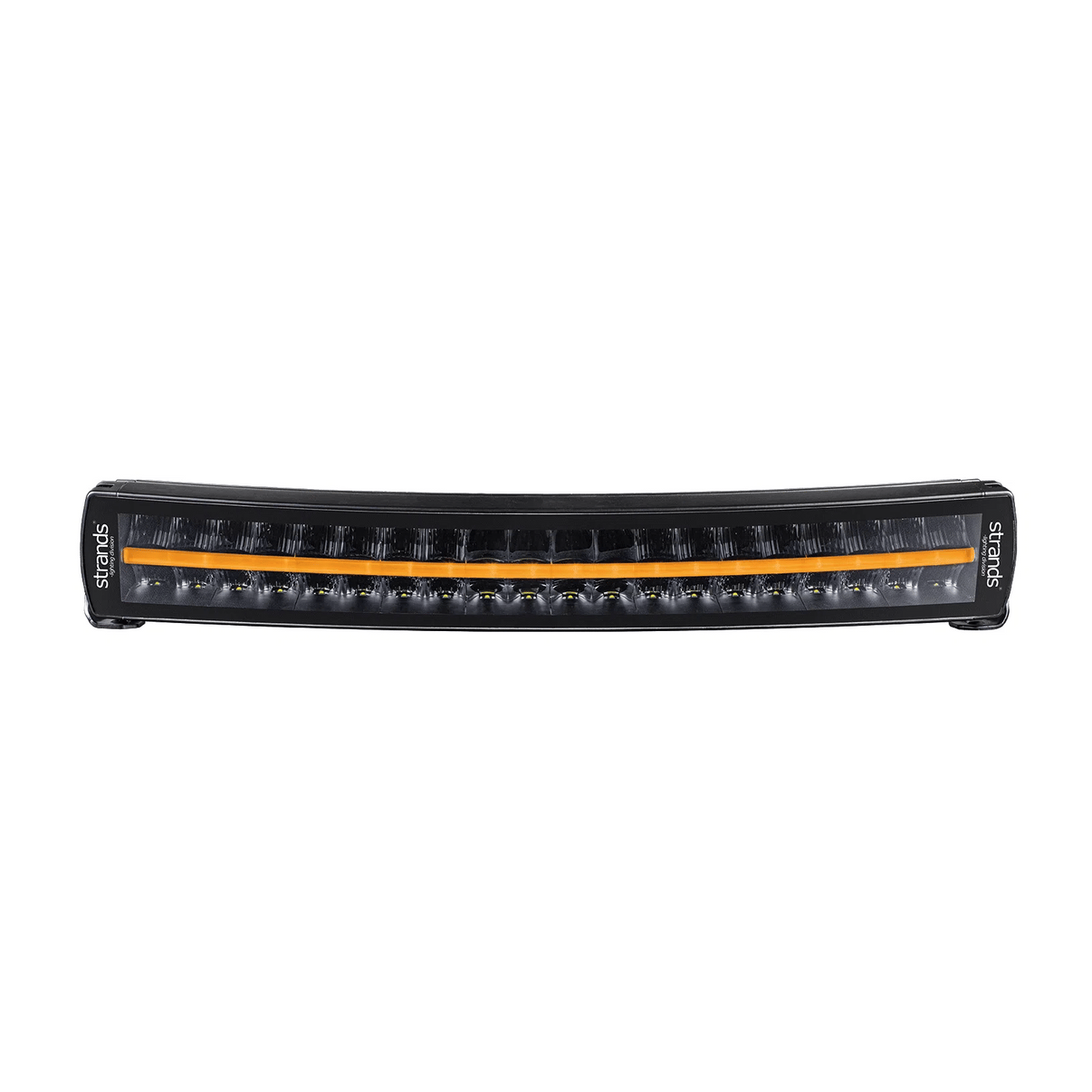

22" Siberia Curved Double Row

Welcome to the future. This is Siberia Curved. A double row LED bar, made for your vehicle. It is more than innovative. Siberia is pushing the boundaries and redefining what an LED bar is. We are talking cutting-edge design in combination with revolutionary features. 22" model is E-approved.

Pioneering design and incredible light capacity. Let yourself be enchanted by Siberia Curved. A curved shape, appealing from all angles. An elegant look, even during the bright hours of the day. Exclusive material choices. Innovative features that provide freedom of choice. Make your own mark and choose between amber and white position light. And of course - Siberia Curved offers an optimized light beam that provides maximum width, without losing length.

DUAL POSITION LIGHT

Every little element is created to bring out the highest possible performance and interact in perfect harmony. Rest your eyes on the unique dual position light that runs in a line along the bottom of the bar. Express your style and personality by choosing the position light colour between amber and white.

Siberia Curved is also available in a single-row model - perfect for cars and trucks

This light is sold individually and does not include a harness.

Wiring Harness Options:

Harness for one light – 72999-1
Harness for two lights – 73240-2

Specifications

• Type of lamp LED
• Voltage (V DC) 10-40V DC
• Consumption (w) 12V High beam: 91, White position light: 5.5, Amber position light: 14.5
• Consumption (w) 24V High beam: 91, White position light: 5.5, Amber position light: 14.5
• Theoretical lumen 16000
• Actual lumen 6161
• 1 LUX @ m 415
• IP-class IP67/69K
• Colour housing Black
• Colour lens Clear
• Colour LED´s White
• Beam pattern Combo
• Position light Yes. white and amber
• Connection DT-4
• Cable length (mm) 500
• Material bracket Stainless steel
• Material housing/chassis Aluminium
• Material lens Polycarbonate
• Length (mm) 566.33
• Depth (mm) 71.6
• Height (mm) 76
• Height including bracket (mm) 65
• Operating temperature -20°C – +45°C
• ADR-approved No
• E-approved  Yes
• According to regulation ECE R112. R7
• Reference number 40
• EMC ECE R10
• 3 Year Function Warranty
