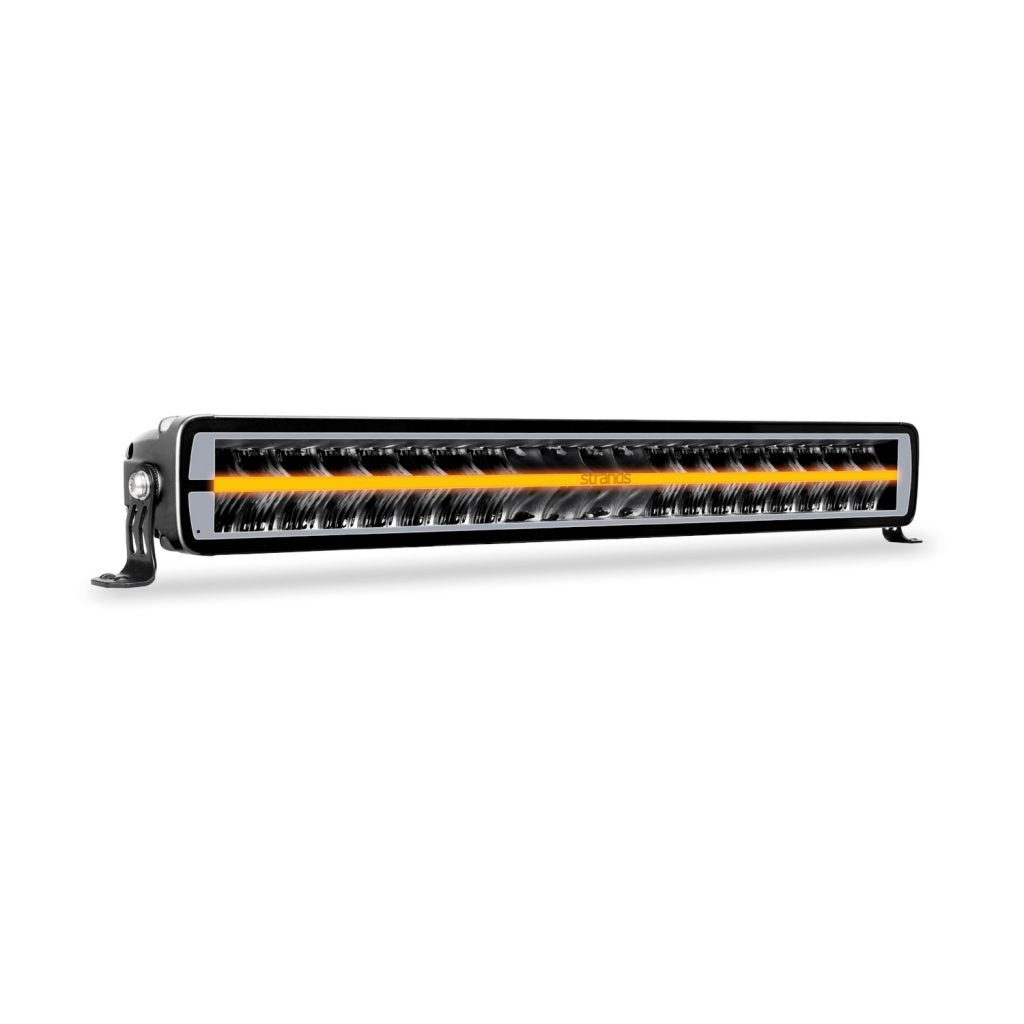

22" Siberia Heated Double Row, E-Marked

Siberia DRH is an E-approved, double-row LED bar with a built-in heated lens. Created to give you maximum visibility regardless of the weather and road conditions. The feature is automatic, starts at 5°C, and keeps snow and ice away from the lens – without any handling by the driver.

Siberia DRH is developed for the harsh cold climate. The LED bar’s exclusive suit gives an unbeatable overall impression. Every little element is created to bring out the best possible performance regardless of the weather conditions. Siberia DRH gives you the unique Siberia dual position light. Express your style and personality by choosing between the colours amber and white.

This light is sold individually and does not include a harness (whip included)

Wiring Harness Options:

Harness for one light – 72999-1
Harness for two lights – 73240-2

Specifications

• Voltage (V DC) 10-40V DC
• Consumption (w) 12V 91 / 118.6
• Consumption (w) 24V 91 / 116.3
• Theoretical lumen 16000
• Actual lumen 6316
• 1 LUX @ m 450
• Kelvin 6000
• IP-class IP67/69K
• Colour housing Black
• Colour lens Clear
• Colour LED´s White
• Beam pattern Combo
• Position light Yes. white and amber
• Functions Heated Lens
• Connection DT-4
• Cable length (mm) 500
• Material bracket Stainless steel
• Material housing/chassis Aluminium
• Material lens Polycarbonate
• Length (mm) 562
• Depth (mm) 71.6
• Height (mm) 76
• Height including bracket (mm) 89
• Operating temperature -30°C – +45°C
• ADR-approved No
• E-approved  Yes
• According to regulation ECE R112, R7
• EMC ECE R12
• 3 Year Function Warranty
