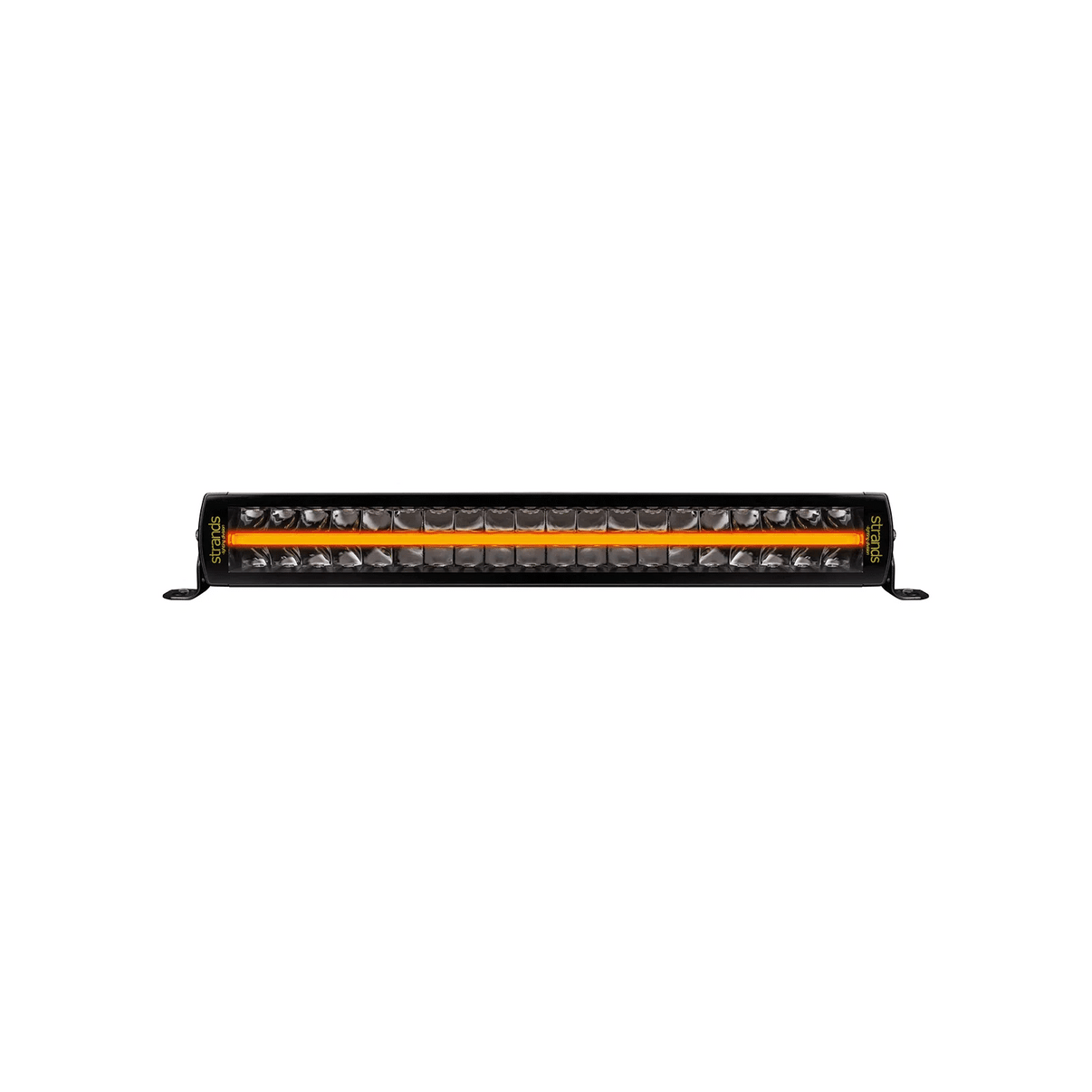

22" Siberia Outlaw, Double Row

The Siberia LED Light Bar family expands with two new Siberia Outlaw models. We designed the world’s most powerful 22″ and 32” LED light bars - with an effective range of 1,220 meters and 1,440 meters. That’s right, 1.22 kilometers and 1.44 kilometers, respectively!

Our engineers pushed the limits, employing revolutionary technologies in reflector design plus the latest evolution in diodes and circuit boards. The light output can be described as a wall of light with unsurpassed range. Definitely not a street legal light, the 22” and 32” sizes provide great side of the road light for the darkest of nights in the roughest road conditions and harshest climates.

Siberia Outlaw incorporates the features you love with the ‘no edge’ lens and two-colour position light, which lets you define your vehicle look with a white or amber colour feature. The installation process is simplified with the side mount brackets, which are included in the package or the base mount brackets, purchased separately.

The Siberia Outlaw gives you the option to push your limits, safely and in style. Get out there, be safe

This light is sold individually and does not include a harness.

**Hardwire installation required**

Specifications

• Type of lamp LED
• PCS LED´s 40
• Voltage (V DC) 10-30V DC
• Theoretical effect (w) 12V 400
• Theoretical effect (w) 24V 400
• Consumption (w) 12V 269.6
• Consumption (w) 24V 256.6
• Consumption specific function (w) 12V White position light: 5.5, Amber position light: 14.5
• Consumption specific function (w) 24V White position light: 5.5, Amber position light: 14.5
• Theoretical lumen 29600
• Actual lumen 13007
• 1 LUX @ m 1220
• Kelvin 6000
• IP-class 67/69K
• Colour housing Black
• Colour lens Clear
• Colour LED´s White and amber
• Beam pattern Spot
• Position light Yes white and amber
• Connection Cable (no connector)
• Cable length (mm) 2500
• Material bracket Stainless steel
• Material housing/chassi Aluminium
• Material lens Polycarbonate
• Length (mm) 562
• Depth (mm) 71.5
• Height (mm) 76
• Height including bracket (mm) 89
• Operating temperature -20°C – +45°C
• ADR-approved No
• E-approved  No
• EMC ECE R10
• 3 Year Functional Warranty
