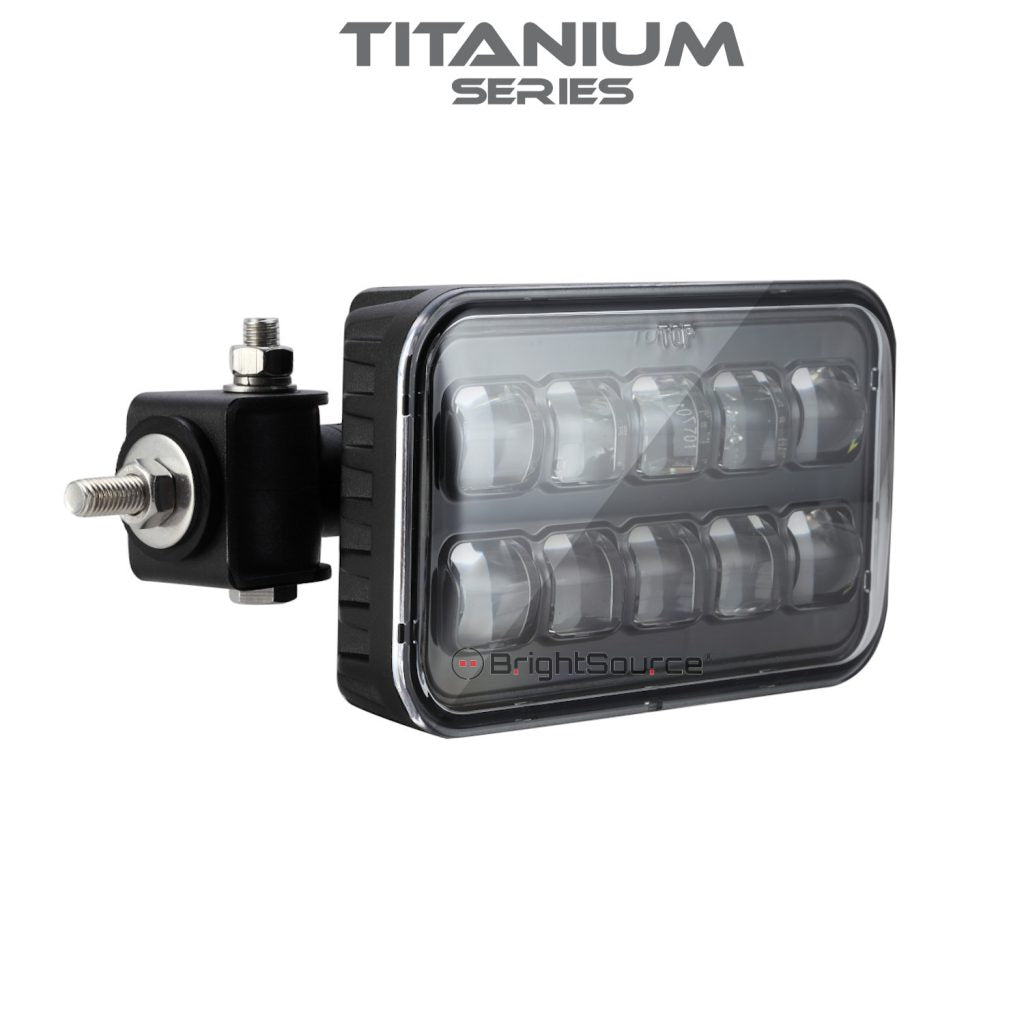

4" x 6" Zero Glare Reverse/Work Lamp

Features:

Aspheric Lens Optical system - Zero Glare, Directed Beam Pattern

Slim profile, smooth, clean look with no bezel housing

Dark lens cosmetic with stunning bright white output

Bottom or Side Mount Options

Radio Frequency protection - CISPR25-Class 3/CE

5 Year Limited Warranty

What’s included: This is for one lamp. Deutsch Connector Whip included .

Harness for One Lamp: 72999

Harness for Two Lamps: 73240

Specifications

LED: 10 x 6W ETI

Beam Pattern: 100° x 40° Diffused Zero-Glare

Colour Temperature: 5700K

Luminous Flux: 5600 (Raw) 4400 (Effective)

Lux: 1 Lux @ 144M

IP Rating: IP68/69K

Voltage: DC9-36V

Wattage: 60W

Amperage 12V/24V: 5.5A/2.8A

Reverse Polarity Protection: Yes

Over/Under Volt. Protection: Yes

Radio Frequency Protection: CISPR25 Class 3

Electronic Heat Management: Yes

Vibration Protection: Yes

Temperature Range: -40 - +60°C

Housing Material: ADC 12 Aluminum with Anodized Polyester Powdercoat

UV and Shock Resistant: Yes

Lens Material: PMMA

Mounting Bracket: Die-cast aluminum with Stainless Steel hardware

Dimensions: 150 x 90 x 88mm (6.25 x 3.5 x 3.46”)

LED Lifespan: 50,000+ hrs

Certification: CISPR36-Class 3, E-Mark ECE R112/R10, CE, ROHS

Warranty: 5 Year Limited
