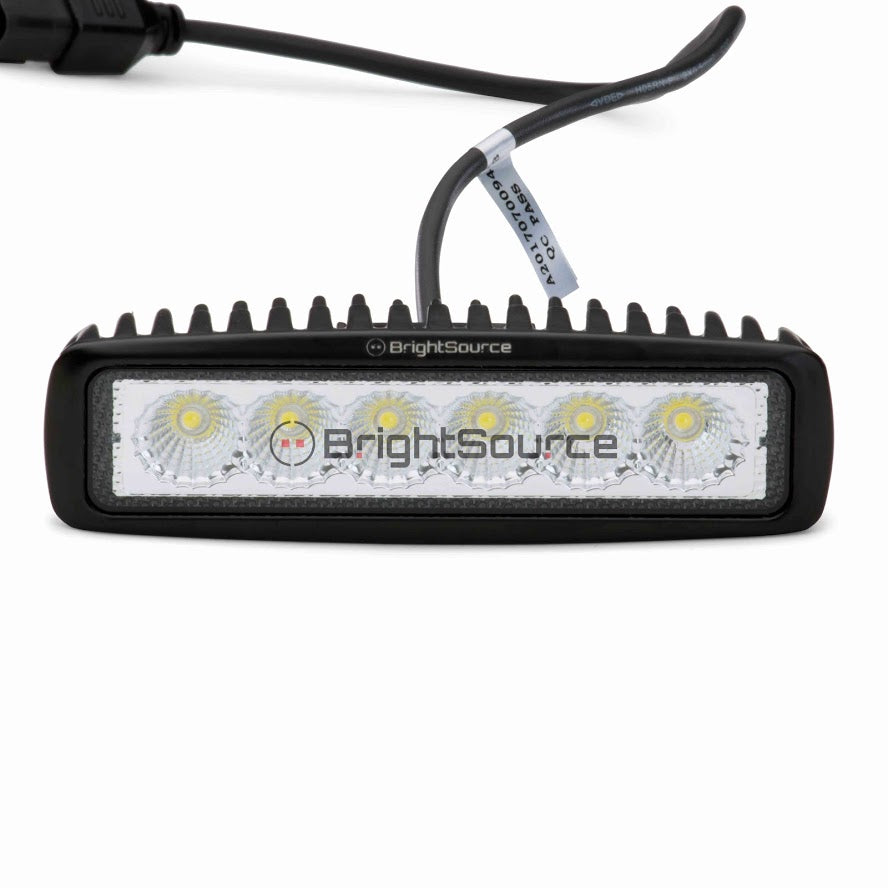

6" x 1.75" Rectangular Work Light Flood

Our 6” Rectangular E-Mark Work Light is popular for its output, size and value. The 6000K beam is a crisp white colour, with a 90° flood pattern that is useful as a work light or a back up light for your towing needs. The compact aluminum housing protects the electronic system with an encapsulated epoxy coating and is rated an impressive IP 67.

Further protection is provided through the Powder Coating process and a waterproof Deutsch Connector for use in the most challenging conditions. This light’s impressive 90° flood light output makes for exceptional performance in all types of work trucks, municipal or commercial fleets, road work/service vehicles, agriculture, forestry, mining, construction…virtually any work vehicle or recreational towing application

Features

E-Mark, 90° Flood Pattern

Steam/Water and Dust Proof

Lightweight, Powder Coated Aluminum Housing

304 Stainless Steel Mounting Bracket and Hardware

3 Year Limited Warranty

Specifications

• LED: 6 x 3W
• Beam Pattern: 90° Flood Pattern
• Colour Temperature: 6000K
• Luminous Flux: 1620 lm (Raw) 1061 lm (Effective)
• Lux: 1 Lux at 32 m
• IP Rating: IP 67
• Voltage: DC10-30V
• Wattage: 18W
• Amperage: 12V/24V: 1.5 @12V / 0.7 @ 24V
• Reverse Polarity Protection: Yes
• Over/Under Volt Protection: Yes
• Temperature Range: -40 - +60°C
• Housing Material: Aluminum with Powdercoat
• Lens Material: Polycarbonate
• Mounting Bracket: 304 Stainless Steel & Hardware
• Size: 160 x 45 x 63mm (6 x 1.8 x 2.5”)
• Harness: Deutsch Connector Whip Sold Separately (PN 73350)
• LED Lifespan: 30,000+ hrs
• Certification: EMC, CE, IP67, IP69K RoHS
• Warranty: 3 Year Limited
