72" BIG ENERGY XL WARNING LIGHT ROOF BAR
Regular Price
$1,599.00
x 1

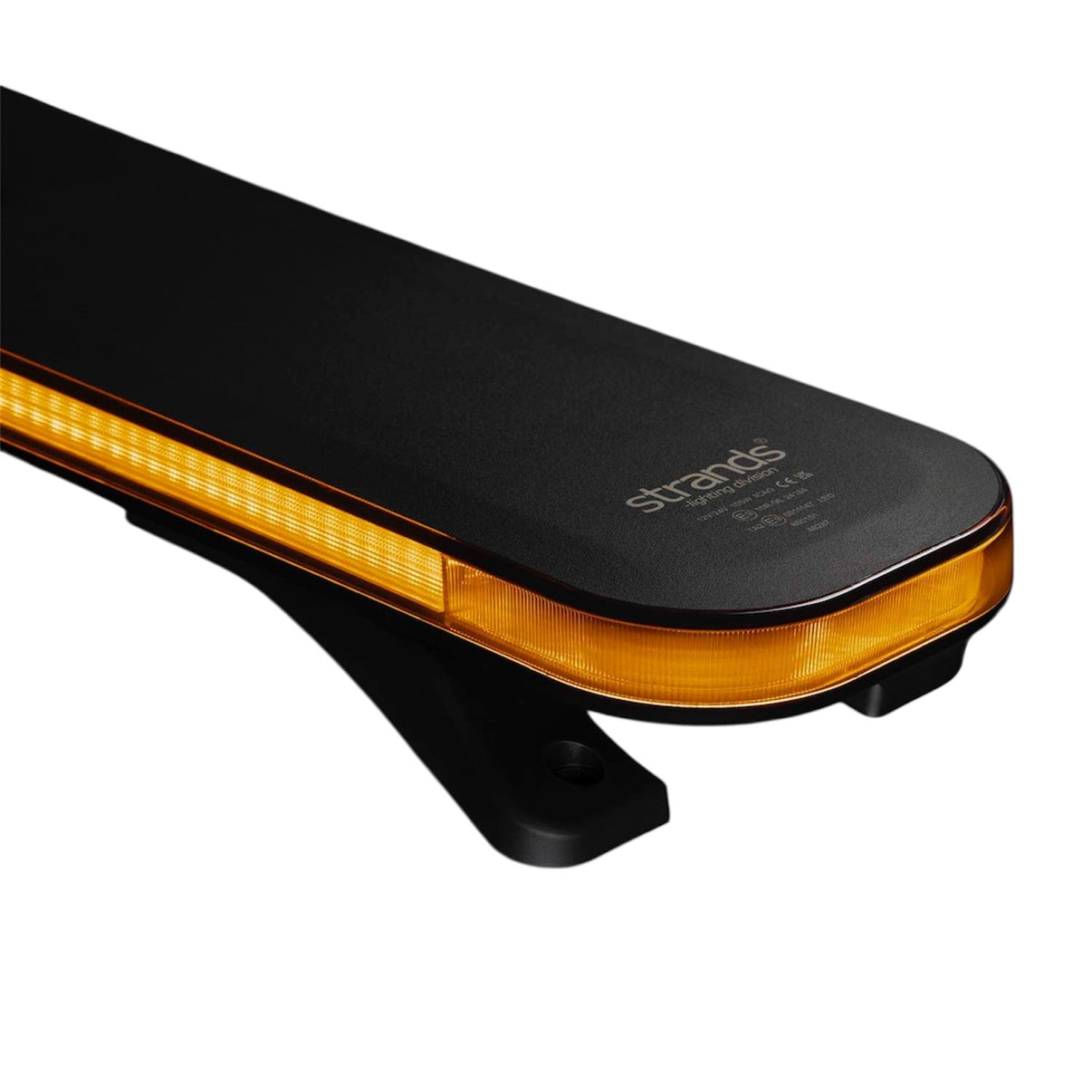

A smooth, dark style with an irresistible amber glow. The heavy-duty Big Energy XL is available in sizes between 880-1840 mm and has a 200 mm depth, making it a solid fit for trucks and other heavy vehicles. It’s E-approved ECE R65 TA2 and approved according to regulation ICAO type C for use on airport vehicles. This makes it a powerful warning light solution for any driver. The premium design boasts a dark lens, smooth sparkling TPU top, and rounded edges. It’s also updated with a much-requested feature: the amber cruise light glow. The amber cruise light has two patterns: on the edges or around the bar. For maximum flexibility, you can choose between 27 warning light patterns, and it will automatically switch to the latest setting. A 2500 mm cable allows easy access to the junction box, and it has separate cables for steady-on and day mode. The Big Energy XL is a durable product with high protection against dirt and water, thanks to the IP67 IP rating. It’s covered by Strands Lighting Divisions’ 3-year function warranty.
Specifications
Voltage (V DC) 10-32V DC
Consumption 160w
Patterns 29
Functions Warning light
Connection Cable
Cable length (mm) 2500
Color housing Black
Color lens Dark tinted
Color LED´s Amber
Material bracket Nylon
Material housing/chassis Aluminium
Material lens Polycarbonate
Length (mm) 1840
Depth (mm) 200
Height (mm) 44
Height including bracket (mm) 100
IP-class 67
Operating temperature -30 - +60°C
According to regulation ECE R65 Class 2, ICAO Type C
EMC ECE R10
Wiring
Black cable - (Negative)
Red cable + Positive
White cable Low intensity, constantly connect to red wire to achieve it
Blue cable + (Positive steady on pattern nr 28 and 29)
Yellow cable Pattern selection, apply to red
Brown cable Right arrow direction (Apply to red wire constantly)
Green cable Left arrow direction (Apply to red wire constantly)
Mounting details included Screws, washers, bolts, 15A fuse
Manual
