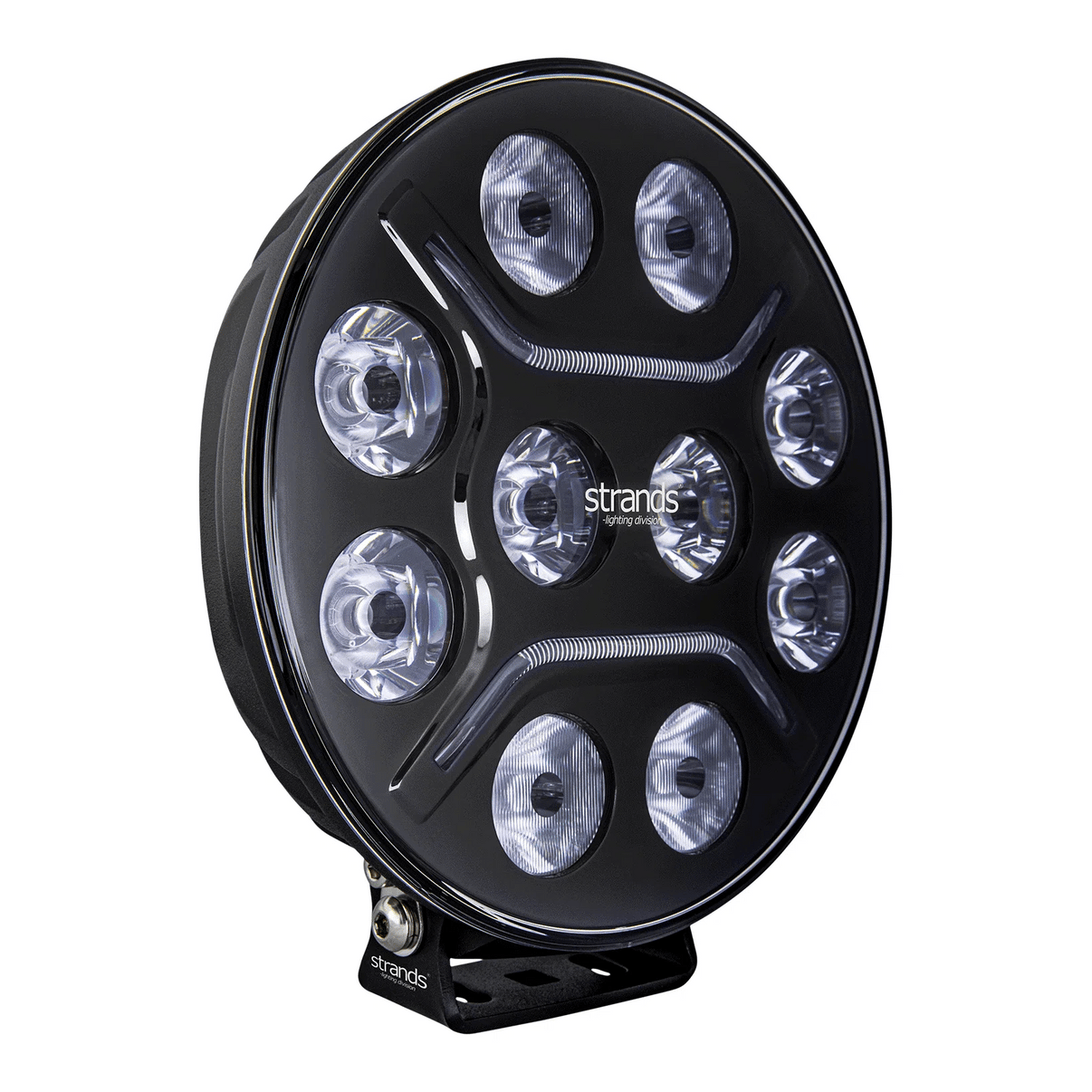

9" Intense Round Driving Light, E-Marked

With one look, you’d be amazed by this futuristic, all-black knight. Dark Knight Intense is an homage to innovation and symmetry. Look into the fearless knight eyes, how smooth they increase the light intensity – bringing you a unique position light. Embrace the advanced lighting powers and enjoy the stunning night skyline. The future is yours.

Features

This light is sold individually and does not include a harness.

Wiring Harness Options:

Harness for one light – 72999-1
Harness for two lights – 73240-2
For three lights – 270479 Siberia Pro High Power Harness Kit

Specifications

• Type of lamp LED
• Type of LED LP
• PCS LED´s Driving beam: 10, Position light: 4
• Voltage (V DC) 9-36V DC
• Theoretical effect (w) 12V 150
• Theoretical effect (w) 24V 150
• Consumption (w) 12V 125
• Consumption (w) 24V 115
• Theoretical lumen 14000
• Actual lumen 11000
• 1 LUX @ m 445
• Kelvin 6000
• IP-class 68/69K
• Colour housing Black
• Colour lens Clear
• Colour LED´s White and amber
• Beam pattern Combo
• Position light Yes white and amber
• Connection DT4
• Cable length (mm) 500
• Material bracket Stainless steel(sus304)
• Material housing/chassi Aluminium
• Material lens Polycarbonate
• Depth (mm) 70
• Height including bracket (mm) 233.5
• Diameter (mm) 218
• Operating temperature -40°C – +60°C
• ADR-approved No
• E-approved Yes
• According to regulation ECE R7 R112
• Reference number 45
• EMC ECE R10
