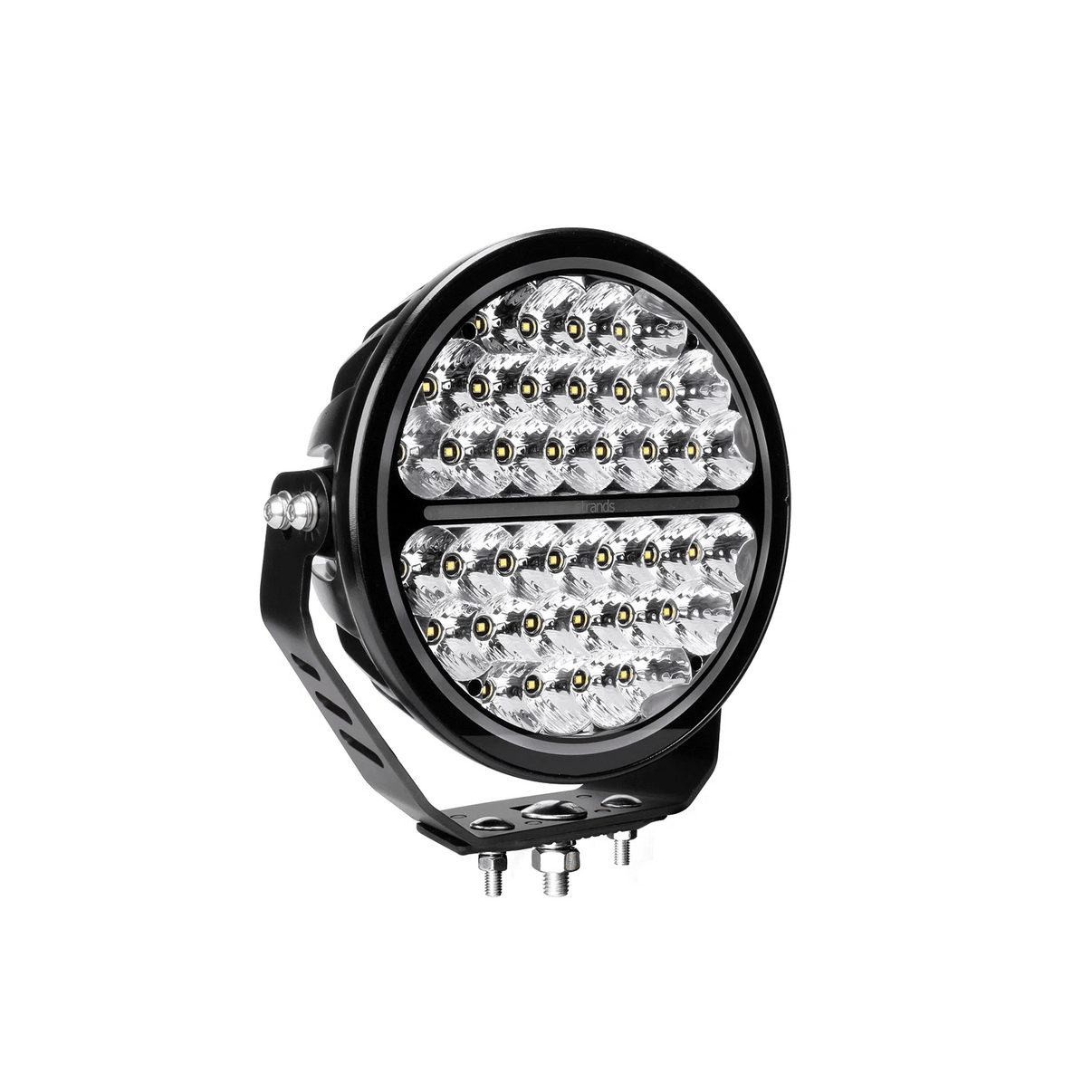

9" Round Siberia Night Ranger E-Marked

The Siberia Series Night Ranger continues the tradition of innovation that evolved with our LED light bars. The 7” and 9” round lights incorporate 2 separate lighting functions – a driving light and a position light – both beautifully positioned in the housing.

The 7” & 9” Night Ranger models have a clear lens with an E-approved combo driving light pattern to produce exceptional range. The combination pattern delivers both long range and side-of-the-road illumination, allowing you to see objects sooner, improving road/trail safety. The second feature is a dual colour position light, which illuminates with your choice of output – a cool white or rich amber colour. This feature gives you the option of linking to daytime running lights, flashers or other functions and customizes the appearance of your vehicle.

Included in the package are heavy duty brackets and stainless hardware to ensure ease of installation. Consider adding a harness adapter (PN 270438) to seamlessly integrate the lamp’s DT4 connector with a BrightSource DT2 wiring harness. See below for details.

Features

E-Approved

Dual Position Light (Amber & White)

Optimized Light Beam

This light is sold individually and does not include a harness.

Wiring Harness Options:

Harness for one light – 72999-1
Harness for two lights – 73240-2
For three lights – 270479 Siberia Pro High Power Harness Kit

Specifications

• Type of lamp LED
• Type of LED Osram
• PCS LED´s 34
• Voltage (V DC) 9-32V DC
• Theoretical effect (w) 12V 170
• Theoretical effect (w) 24V 170
• Consumption (w) 12V 145.3
• Consumption (w) 24V 144.6
• Theoretical lumen 20400
• Actual lumen 13377
• 1 LUX @ m 465
• Kelvin 6000
• IP-class 67/69K
• Colour housing Black
• Colour lens Clear
• Colour LED´s White and Amber
• Beam pattern Flood
• Position light Yes amber and white
• Connection DT-4
• Cable length (mm) 500
• Material bracket Stainless steel
• Material housing/chassi Aluminium
• Material lens Polycarbonate
• Length (mm) 228.6
• Depth (mm) 86.7
• Height (mm) 228.6
• Height including bracket (mm) 249.3
• Diameter (mm) 228.6
• Operating temperature -20°C – +45°C
• E-approved Yes
• According to regulation ECE R112 R7
• Reference number 30
• EMC ECE R10
• 3 Year Function Warranty
