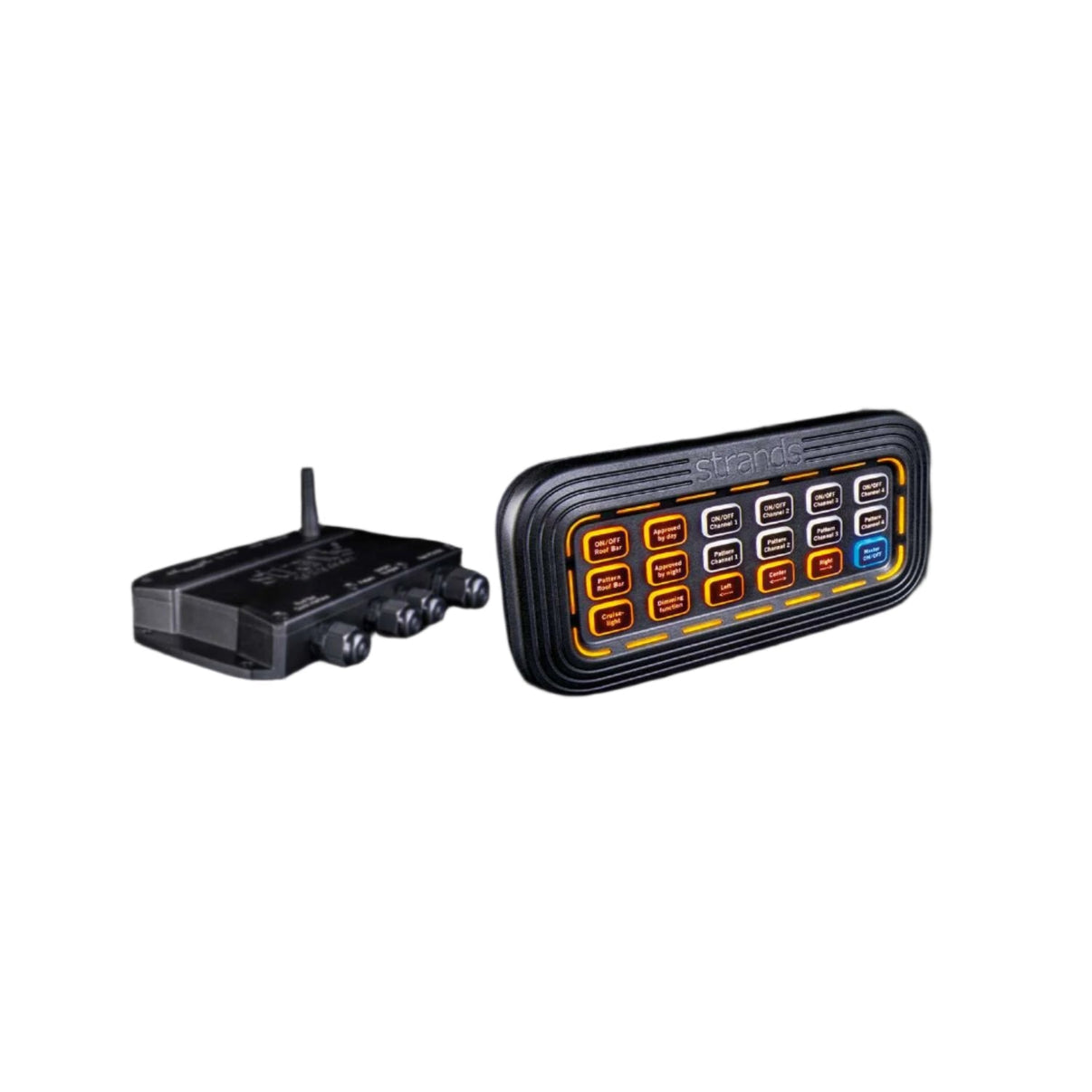

Cruise Light Wireless Control Unit

The Cruise light wireless controller is the first to control all vehicle lighting by pressing one button. You get outstanding features to take your driving experience to the next level. For every driver every day.

The Cruise Light wireless controller fits all vehicles and can control all vehicle lighting. It´s all possible because of the included relay box, with six different output channels, a total of 700W. 2x 150W (15A) intended for the Cruise Light Roof bars and 4x 100W (10A) for any type of vehicle lighting.

The output channels can be controlled with the wireless control or the signal cable. Use the controller wirelessly with batteries (4x AAA, not included), or place it somewhere in your cabin and connect the controller with the included USB cable. The relay box can withstand harsh environments, is waterproof, IP-rated according to IP67, and the rubber gaskets protect the cables.

The wireless controller is color-coordinated. Nine buttons are amber, eight are white, and one is blue. The amber buttons are dedicated to the Cruise Light Roof bars and can control the bar functions like changing the patterns or switching them on and off. For most functions, the button will be highlighted on the active ones, and the roof bar patterns will also be shown on the surrounding LEDs. You also get buttons for approval by day mode, night mode, and Cruise light mode.

The three buttons, left, center, and right, are used for traffic advising, flashing from right to left, from the center and out, and left to right. The blue button turns all the connected lighting on and off, and the lights will return to the same status before turning off using the built-in memory function. Pressing three seconds will turn on all channels.

If you want to control all the lighting with the relay box, use the signal cable. The signal cable makes it possible to, for example, connect the reverse light to one of the four channels and use it as a work light with the wireless control. It becomes a double function. By using the Cruise Light wireless controller and the included relay box, you will always be ready to make your passion visible and take your driving experience to the next level. For every driver every day.

Specifications

Manual

Download Manual
