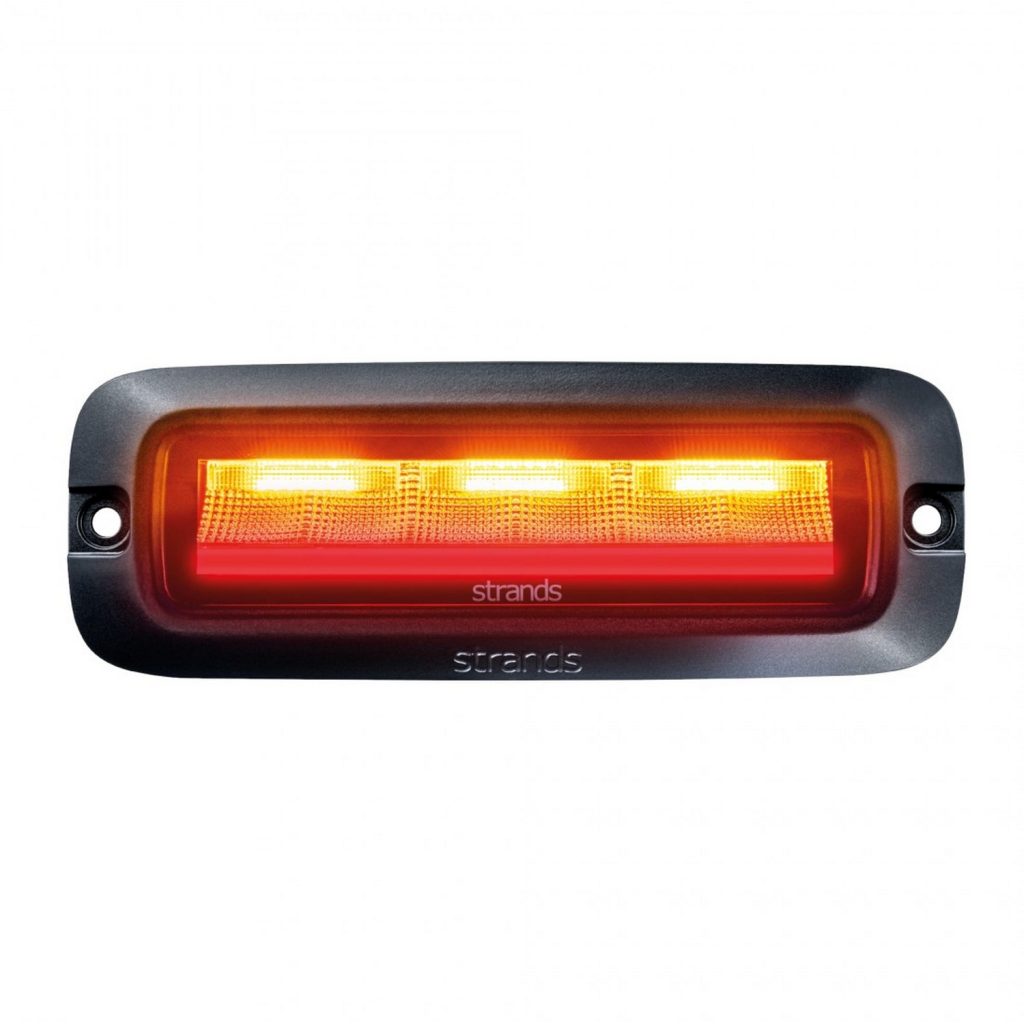

Siberia Multiple Options Tail Light (w/indicator)
Regular Price
$259.00
x 1
One light. Multiple options. Meet Siberia MO, a brand-new tail light in the Siberia family with four E-approved functions. Delivering the perfect lighting solution in one light with revolutionary mounting possibilities.
Siberia MO comes in two versions, delivering all the features you want in a tail light, where every function is equally essential. This version provides an indicator, brake light, reversing light, and red position light approved as a tail light. The other version (part. no. 809225) has the same functions. But the indicator function is replaced with a warning light. Combine them with Siberia Tail light (part. no. 809226) to get the perfect mix and unit.
Lights are sold individually.
Specifications:
-
Type of LED Brake:Zeme Reverse:OSRAM Tail light:Zeme Indicator:Refond
Type of Lamp LED
PCS LED´s Brake:21 Reverse:6 Tail light:9 Indicator:21
Voltage (V DC) 10-32V DC
Theoretical effect (w) 12V Brake:21W Reverse:6W Tail light:9W Indicator:31.5W
Theoretical effect (w) 24V Brake:21W Reverse:6W Tail light:9W Indicator:31.5W
Consumption (w) 12V Brake:10.2W Reverse:3.9W Tail light:5.4W Indicator:4.8W
Consumption (w) 24V Brake:10.4W Reverse:4.2W Tail light:5.5W Indicator:5.0W
Functions Brake light Reverse light Tail light Indicator
Theoretical lumen Reverse light: 546
Actual lumen Reverse light: 322
1 LUX @ m Reverse light: 14
Kelvin 6000
IP-class 67/69K
Colour housing Black
Colour lens Clear
Colour LED´s Red/white/amber
Beam pattern Flood
Connection Cable
Cable length (mm) 2500
Material bracket Flush mount: Alumimun U bracket: Metal plate
Material housing/chassis Aluminium
Material lens Polycarbonate
Length (mm) Flush mount: 214 U-bracket: 172
Depth (mm) Flush mount: 71,5 U-bracket: 77
Height (mm) Flush mount: 77 U-bracket: 50
Height including bracket (mm) U-bracket: 53,8
CC (mm) Flush mount: 196
Operating temperature -30°C - +65°C
ADR-approved No
E-approved Yes
According to regulation ECE R148 EMC ECE R10
Warranty 3 Year Functional
